Online Dust Particle Counter: Real-Time Monitoring for Cleanroom Environments

In industries such as pharmaceutical manufacturing, electronic semiconductors, and food processing that require extremely high levels of cleanliness, the quantity and particle size distribution of dust particles in the air directly affect product quality and production safety. The traditional offline sampling detection method cannot achieve real-time monitoring and cannot meet the requirements of modern intelligent manufacturing for environmental cleanliness. As a continuous monitoring device, the online dust particle counter can detect the concentration of particles in clean environments in real time and automatically determine the purification level, providing reliable environmental quality assurance for the production process.

The Importance of Online Dust Particle Counter

The stability of clean room environment is a key link in product quality control. The importance of online dust particle counters lies in:

Real time monitoring and warning: Continuously monitor changes in particulate matter concentration, promptly detect abnormalities in clean environments, and avoid batch pollution.

Compliance assurance: Automatically determine the purification level based on standards such as ISO14644 and GMP to ensure that the production environment meets regulatory requirements.

Process optimization: Through long-term data trend analysis, optimize the operation strategy of the air conditioning system to reduce energy consumption and operating costs.

Working principle and technological advantages

Working Principle:

The online dust particle counter is based on the principle of light scattering. The laser diode emits a laser beam, and when particles in the air pass through the optical detection cavity, scattered light is generated. The photodetector receives the scattered light signal and converts it into electrical pulses. The particle size is analyzed by the pulse amplitude, and the particle concentration is counted by the number of pulses.

Technical advantages:

1. Multi parameter synchronous monitoring:

Simultaneously measuring six particle size channels of 0.3, 0.5, 1.0, 3.0, 5.0, and 10.0 μ m in one sampling, comprehensively reflecting the cleanliness status.

Integrated temperature, humidity, and air pressure sensors provide complete environmental parameters.

2. High precision and reliability:

Adopting imported laser light source, with a lifespan of over 30000 hours and strong stability.

The particle size distribution error is ≤± 30%, and the repeatability error is less than 10%, meeting the measurement requirements.

3. Intelligent functions:

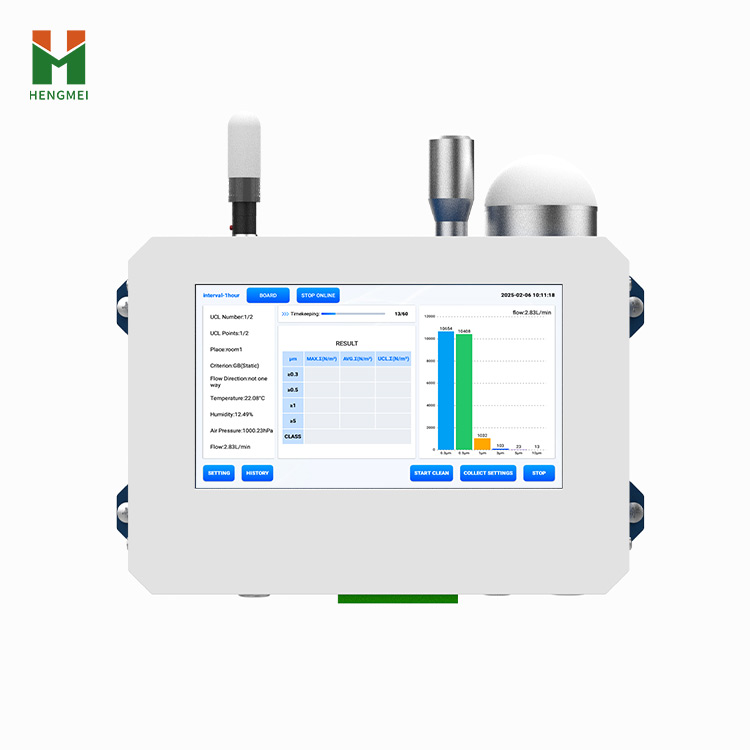

Android 7.1 system, 7-inch color touch screen, intuitive and convenient operation.

Support 95% confidence level (UCL) calculation, automatically determine purification level.

4. Flexible data management:

Storage capacity of 100000-100000 units, supporting USB drive export and WIFI/Ethernet cable upload to cloud platform.

Equipped with a regulatory client to achieve long-term and short-term analysis and remote monitoring of cleanliness.

5. Sound and light alarm mechanism:

Concentration threshold can be set, and real-time alarm can be triggered when exceeding the standard, helping to respond quickly.

Application Fields

The online dust particle counter is suitable for the following scenarios:

Pharmaceutical industry: dynamic monitoring of sterile production lines and clean areas to ensure GMP compliance.

Electronic semiconductors: Ultra clean environmental monitoring for wafer processing, chip packaging, and other applications.

Food processing: Environmental control in clean packaging workshops to prevent microbial contamination.

Aerospace: Environmental protection for high-precision component production and assembly.

Biological laboratory: clean environment maintenance such as cell culture and PCR laboratory.

Industry pain points and solutions

Pain points:

Offline detection has low efficiency and cannot reflect dynamic changes in the environment, resulting in blind spots in monitoring.

The delayed discovery of abnormal cleanliness may lead to contamination of bulk products.

Multi parameter data is scattered and lacks a unified monitoring platform, resulting in high management costs.

Solution:

Continuous online monitoring: The sampling period can be set from 10 seconds to 99 hours, achieving unmanned real-time monitoring.

Intelligent warning system: sound and light alarm and cloud platform push, achieving instant response to abnormalities.

Integrated data management: Multi parameter synchronous collection and cloud analysis to improve management efficiency.

Online dust particle counters have gradually become important measurement tools in modern clean environment monitoring through their multi parameter synchronous monitoring, high-precision detection, and intelligent management functions. It not only solves the pain points of traditional offline detection, but also achieves active control of environmental quality through cloud platforms and warning functions.
