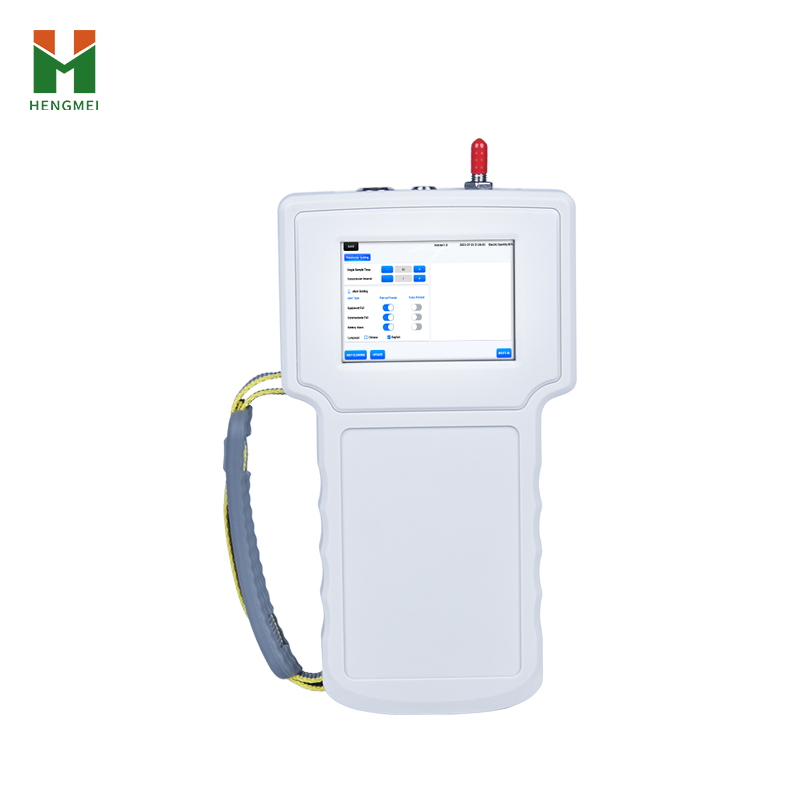

Handheld Laser Particle Counter: Accurate Detection of Airborne Particles in Multiple Fields

In the fields of clean environment monitoring, air quality management, and micro pollution control, the quantity and distribution of suspended particulate matter in the air are the core indicators for evaluating the cleanliness of the environment. Handheld laser particle counter, as a portable high-precision detection device, can quickly measure the quantity and particle size distribution of particles in the range of 0.3 μ m to 10 μ m in the air, providing real-time and reliable data support for environmental assessment and process control.

The Importance of Handheld Laser Particle Counter

The particulate pollution in the air directly affects product quality, production safety, and personnel health. In industries such as pharmaceuticals, semiconductors, and biomedicine that require extremely high levels of cleanliness, real-time and accurate particle monitoring is key to ensuring process environment and product compliance. Although traditional fixed particle counters have high accuracy, they are complex to install and have poor mobility, which cannot meet the needs of multi-point and fast inspection. The handheld laser particle counter integrates laser sensing, microflow control, and intelligent data processing technology, allowing for real-time multi-point sampling and data analysis on-site, greatly improving monitoring efficiency and response speed. This instrument can be used not only for cleanroom certification and equipment performance verification, but also for daily environmental monitoring, fault diagnosis, and quality auditing, providing users with a full process particulate matter control solution.

Technical principles and compliance

The handheld laser particle counter is based on the principle of light scattering, and its working process complies with national metrology and technical specifications such as JJF1190-2008 and GB/T6167-2007, and supports cleanliness standards such as ISO 14644 and GMP. Its working principle is as follows:

Light scattering detection mechanism: The instrument uses a semiconductor laser as the light source, emitting a highly stable laser beam. When particles in the air pass through the optical sensing area, scattered light signals are generated, and the intensity of scattered light is proportional to the particle size of the particles. The photodetector receives the signal, which is amplified by the circuit and processed by an algorithm to ultimately achieve particle counting and particle size classification.

• Particle size channel and concentration calculation: The instrument comes standard with 6 particle size channels (0.3 μ m, 0.5 μ m, 1.0 μ m, 3.0 μ m, 5.0 μ m, 10 μ m), which can simultaneously output the number of particles in each channel and automatically convert them into standard units such as particles/m ³ and particles/ft ³. It supports 95% UCL statistics and real-time display of cleanliness levels.

Intelligent calibration and traceability: The instrument has automatic calibration function, supports flow calibration and sensor diagnosis, ensuring the accuracy and comparability of long-term measurements.

Technical advantages and performance characteristics

Handheld laser particle counters have significant advantages in optical design, intelligent operation, and data management:

1. High precision optical system: using long-life semiconductor lasers (>35000 hours), with strong particle size resolution, repeatability error<10%, and distribution error controlled within ± 30%.

2. Intelligent operating system: equipped with a capacitive touch LCD screen, real-time display of concentration distribution bar chart, cleanliness level, temperature and humidity, and sampling status, with intuitive and easy operation.

3. Multi mode data management: Built in 4GB storage space, supports 100000-100000 data records, can export data through USB flash drive, Bluetooth or Wi Fi, and equipped with Bluetooth printer for on-site report printing.

4. Long lasting battery life and portable design: Equipped with a built-in 10000mAh lithium battery, it can work continuously for ≥ 8 hours and weighs only 0.95kg without any battery, making it very suitable for mobile inspection and outdoor use.

5. Audit tracking and compliance support: Supports multi-level user management and data traceability, meets the requirements of GMP, ISO and other standards for audit tracking, and meets the needs of quality audit and certification.

6. Multi interface interconnection: equipped with dual USB interfaces and Wi Fi modules, supporting remote data transmission and system integration.

Application Fields

Handheld laser particle counters are widely used in the following scenarios:

• Pharmaceutical and biological products: cleanroom environment monitoring, sterile process validation, GMP compliance testing;

• Semiconductor and electronic manufacturing: cleanliness assessment and equipment emission testing for wafer production and assembly workshops;

Medical institutions and laboratories: Air quality management in key areas such as operating rooms, ICUs, PCR laboratories, etc;

Cleanroom and HVAC: HEPA filter leak detection, cleanroom certification, and daily inspections;

Food and cosmetics production: Microbial control in the production environment and assurance of product cleanliness;

Research and quality inspection institutions: performance testing of air purifiers, evaluation of filter material efficiency, and teaching demonstrations.

The handheld laser particle counter solves the limitations of traditional particle monitoring equipment in terms of mobility, efficiency, and compliance through laser sensing technology, portable design, and intelligent data management, providing an efficient and reliable solution for the clean environment industry. Its high precision, long battery life, multiple interfaces, and audit tracking functions make it an important tool for environmental monitoring and quality control.
