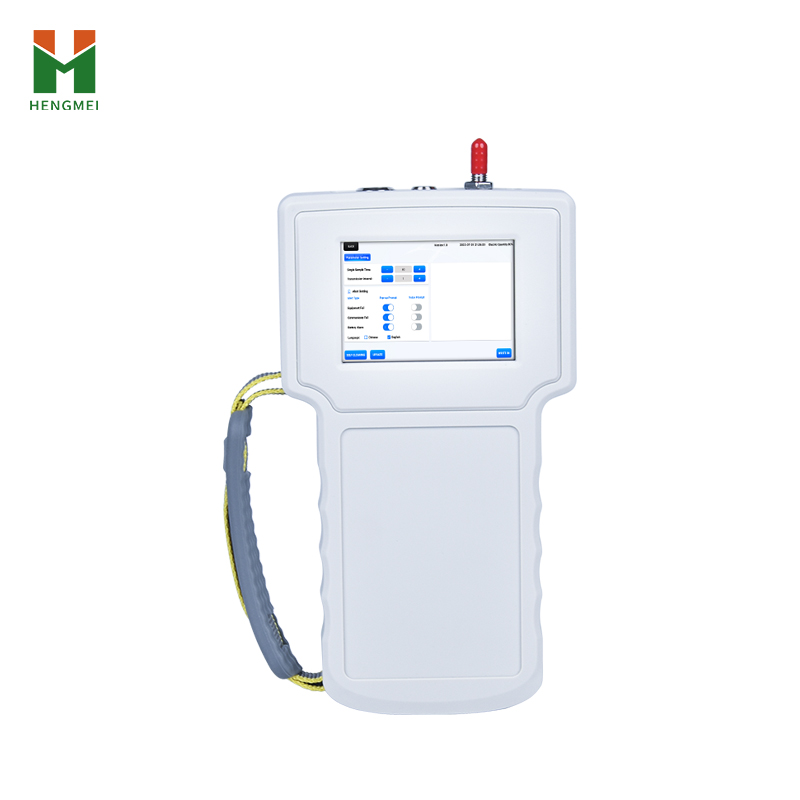

Handheld Dust Particle Counter with Laser Scattering Technology​

In modern industrial production and scientific research, air cleanliness is a key factor affecting product quality, process accuracy, and research results. The handheld dust particle counter, as a portable detection device, provides a new solution for clean environment monitoring through its flexibility and real-time performance. This device can quickly measure the quantity and size distribution of dust particles in the range of 0.3 μ m to 10 μ m in the air, providing real-time and accurate data support for environmental cleanliness assessment.

Technical principle of handheld dust particle counter

1. Principle of Light Scattering and Particle Detection

The handheld dust particle counter operates based on the principle of light scattering technology, and its core detection mechanism relies on the optical properties of particles. When particles in the air pass through a laser beam, light scattering occurs, and its intensity has a specific functional relationship with the particle size.

The equipment uses a semiconductor laser with a lifespan of over 35000 hours as the light source to generate a stable laser beam. When the sampled airflow passes through the optical sensing zone at a standard flow rate of 2.83 liters per minute, each particle passing through the laser beam produces a unique light scattering signal. After capturing these signals with high-sensitivity photodetectors, advanced algorithms are used to analyze the amplitude and quantity of scattered light pulses, and calculate the particle concentration in different particle size ranges.

2. Multi channel particle size grading technology

The handheld dust particle counter has the ability to synchronously detect six particle size channels, covering multiple key particle size ranges such as 0.3 μ m, 0.5 μ m, 1.0 μ m, 3.0 μ m, 5.0 μ m, and 10 μ m. This grading detection is based on a strict calibration curve, ensuring that the distribution error of each particle size channel is controlled within ± 30% (based on 0.5 μ m).

The equipment adopts real-time concentration bar chart display method, and provides key parameters such as equivalent concentration calculation value and cleanliness level value. This multi parameter synchronous display function enables operators to quickly grasp the cleanliness of the environment and make timely judgments.

Technical advantages of handheld dust particle counter

1. High precision measurement performance

The handheld dust particle counter performs excellently in measurement accuracy, with a flow control accuracy of ± 5% and a repeatability relative error of less than 10%. The sampling concentration of the equipment can reach 35000 particles per liter (for particles ≥ 0.5 μ m), which can meet the full range detection requirements from ordinary environments to clean rooms.

2. Intelligent data processing capability

The device is equipped with a capacitive touch LCD display screen and built-in 4GB storage space, which can record 100000-100000 pieces of detection data. The advanced handheld dust particle counter supports 95% UCL calculation and can directly display particle concentration (particles/m ³, particles/ft ³, and other units), while also having data query, export, and Bluetooth printing functions.

The audit tracking function is another highlight of the device, supporting multi-user and multi-level management, and complying with GMP regulatory requirements. The dual USB high-speed communication interface and built-in WiFi module enable fast data export and remote transmission, greatly improving work efficiency.

3. Portability and battery life

The handheld dust particle counter weighs only 0.95kg and measures 238 × 134 × 58mm, truly achieving single handed grip operation. Equipped with a 10000mAh lithium-ion battery, with a battery life of over 8 hours, it meets the needs of all-weather on-site testing.

The device has a wide range of operating environments (0 ℃ -40 ℃, 10% -75% RH) and is suitable for various complex working conditions. The special protective design ensures that the equipment can operate normally in environments containing trace amounts of corrosive gases, expanding its application range.

Application areas of handheld dust particle counters

1. Cleanroom monitoring in the pharmaceutical industry

In the pharmaceutical industry, handheld dust particle counters are used for cleanliness verification in key areas such as sterile formulation workshops and filling lines. The equipment complies with the new GMP requirements and supports both dynamic and static monitoring modes, enabling quick completion of cleanroom level identification and daily monitoring.

2. Clean environment maintenance in the electronics industry

The electronic industry, such as semiconductor manufacturing and LCD panel production, has extremely high requirements for cleanliness. Handheld dust particle counters can be used for process equipment monitoring, cleanroom acceptance, and maintenance monitoring. Its multi particle size channel detection capability is particularly suitable for the monitoring needs of submicron particles in the microelectronics industry.

3. Environmental control of medical and health institutions

Handheld dust particle counters are used for regular environmental monitoring and infection control in hospital operating rooms, ICU wards, sterile preparation rooms, and other areas. The equipment can quickly detect abnormalities in clean environments, providing assurance for medical safety.

4. Management of Industrial Cleanrooms

Handheld dust particle counters are used for regular inspection and verification in clean workshops and workbenches in industries such as precision instrument manufacturing and aerospace. The portable nature of the device allows it to penetrate into traditional monitoring blind spots such as the interior and corners of the device.

Industry pain points and solutions

1. Solve the problem of blind spots in monitoring

Traditional fixed monitoring systems can only perform continuous monitoring at preset points, resulting in a large number of monitoring blind spots. The handheld dust particle counter, with its flexible movement detection capability, can perform real-time detection at any point in the clean room, completely eliminating monitoring blind spots.

2. Reduce monitoring costs

Establishing a complete fixed particle monitoring system requires significant investment, while outsourcing laboratory testing faces problems of long cycles and high costs. Handheld dust particle counters have significant cost advantages in achieving comprehensive cleanliness monitoring with reasonable investment.

3. Improve emergency response capabilities

When there is an abnormality in the clean environment, the handheld dust particle counter can immediately conduct investigation and detection, and quickly locate the pollution source. This rapid response capability can minimize the losses caused by pollution events to the greatest extent possible.

As an important tool for monitoring clean environments, handheld dust particle counters provide reliable technical support for cleanliness control in various industries through their precise measurement performance, flexible operating characteristics, and intelligent data management. This device not only solves the problems of multiple blind spots, high costs, and slow response in traditional monitoring methods, but also provides scientific basis for quality management, risk control, and production optimization.
