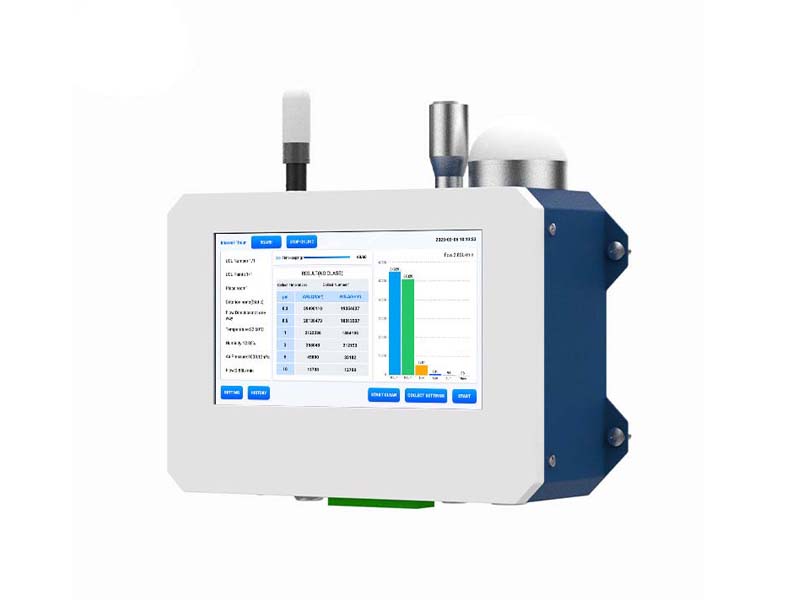

A workshop air quality monitor that intelligently monitors the air cleanliness of the workshop

In numerous industries such as pharmaceuticals, electronics, and food, the cleanliness of workshop air is directly related to product quality and production safety. As a crucial device for detecting the cleanliness of workshop air, the workshop air quality monitor plays a pivotal role. Today, let's delve deeper into how this instrument safeguards the cleanliness of workshop air.

The workshop air quality monitor is calibrated for confidence measurement in accordance with the conditions specified in the national standard GB/T6167-2007 and the calibration specification JJF1190-2008, enabling automatic judgment of purification levels. During a single sampling process, it can simultaneously measure the number of dust particles in six particle size channels and display the number and changes of particles in each channel in real time, providing comprehensive and accurate data for workshop air quality monitoring.

The workshop air quality monitor boasts numerous practical features. Equipped with temperature and humidity sensors as well as an ambient pressure sensor, it can comprehensively perceive environmental parameters. The sound and light alarm function, through setting alarm parameters, promptly issues an alert when particulate counts exceed the limit. Powered by Android 7.1, it offers a good interactive operation experience. The core component, the light scattering sensor, effectively eliminates stray light within the chamber, enhancing the signal-to-noise ratio and ensuring more accurate and reliable measurements. Furthermore, it can calculate based on a 95% confidence level (UCL), convert counting results to m³ and ft³, and automatically determine the purification level according to the classification and regulations. Its usage is highly convenient. Additionally, the workshop air quality monitor supports multiple data transmission methods. Data can be uploaded to a cloud platform, copied via a USB flash drive, and comes with a supervision platform client, facilitating long- and short-term cleanliness analysis and assisting management.

The sampling mode of the workshop air quality monitor can be selected from timed detection and continuous detection, with a sampling volume of 2.83L/min (0.1cfm). It features six particle size channels, allowing for the detection of dust particles of different sizes. The instrument can operate normally in an environment with a temperature range of 0~40℃ and a relative humidity range of 10-75%RH. The sampling period, delay, and measurement interval can be set according to requirements. The data communication mode is diverse, the light source has a long lifespan, and the measurement accuracy of humidity, temperature, and atmospheric pressure is high. The main unit is compact and lightweight, making it easy to install and use.

The workshop air quality monitor, with its precise detection capability, powerful functions, and practical technical parameters, has become a capable assistant for workshop air cleanliness testing. It provides strong support for ensuring product quality and production safety in various industries and serves as a "smart guardian" for workshop air quality monitoring.
